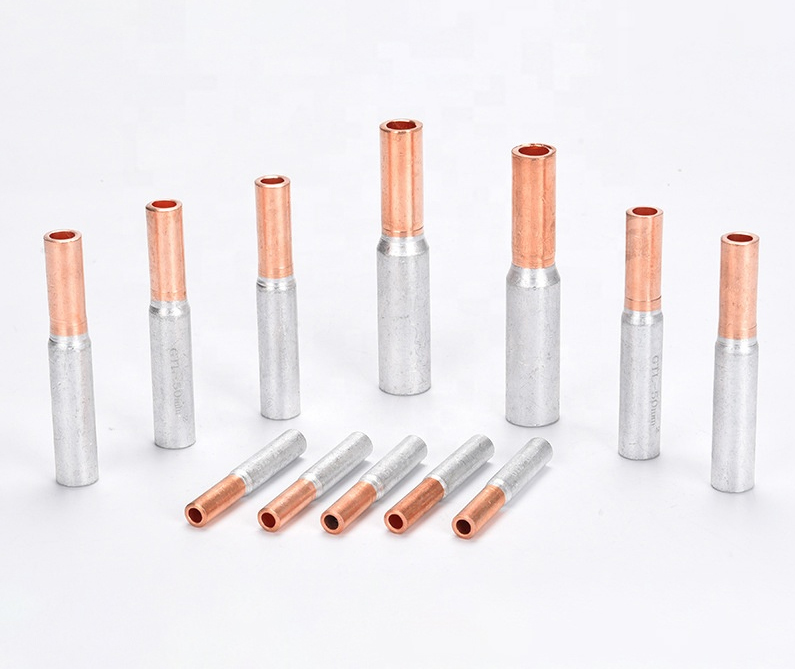

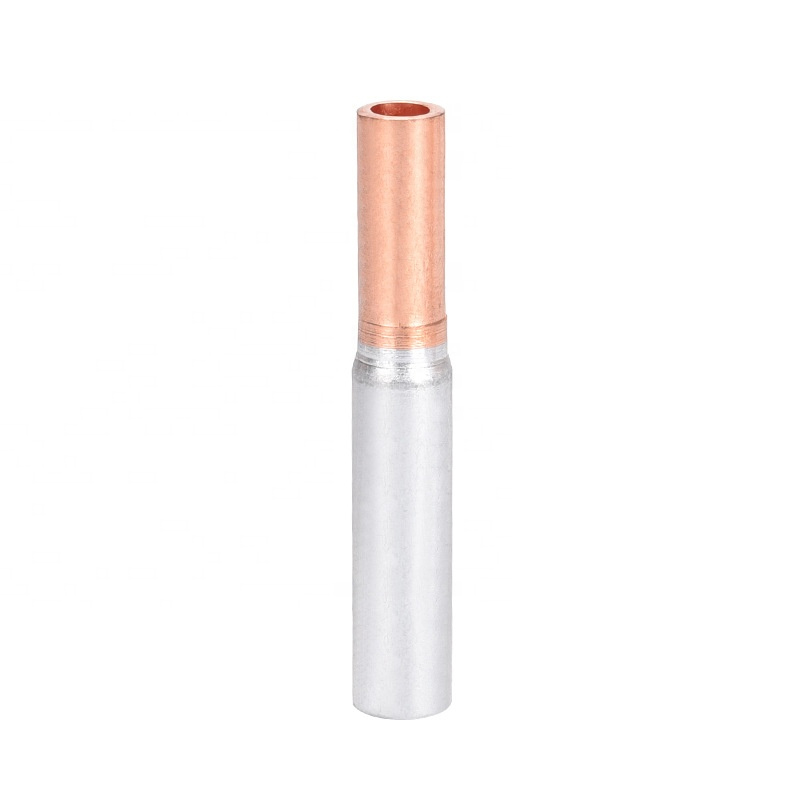

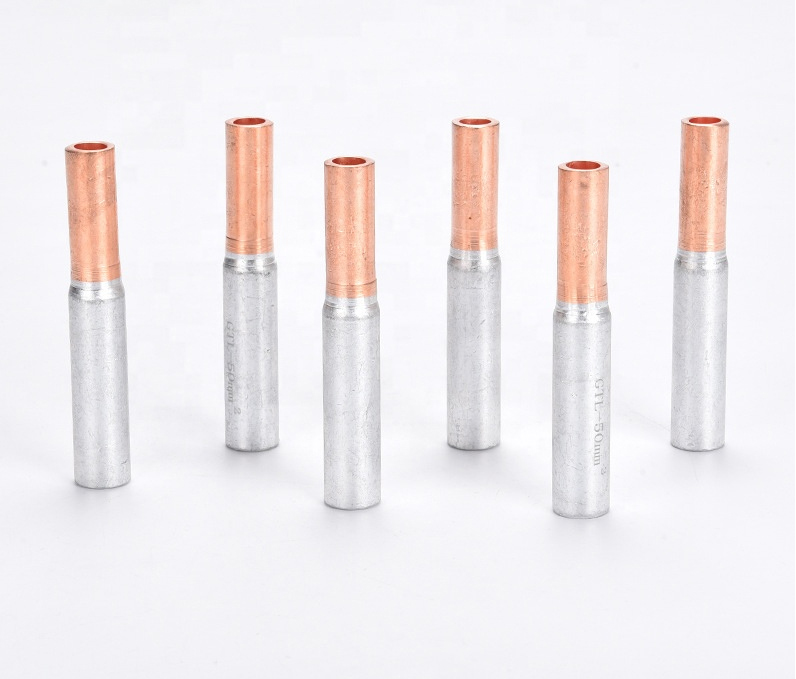

GTL copper and Aluminum bimetal connecting tube/middle connector
Product Description
|

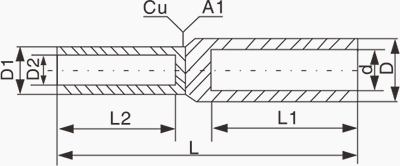

Model |
D(mm) |
d(mm) |
D1(mm) |
L1(mm) |
L2(mm) |
L(mm) |
|
GTL-16 |
10 |
6 |
9 |
30 |
30 |
70 |
|
GTL-25 |
12 |
7 |
10 |
33 |
30 |
75 |
|
GTL-35 |
14 |
8.5 |
11 |
40 |
30 |
85 |
|
GTL-50 |
16 |
9.8 |
13 |
42 |
32 |
95 |
|
GTL-70 |
18 |
11.5 |
15 |
50 |
38 |
105 |
|
GTL-95 |
21 |
13.5 |
17 |
50 |
40 |
110 |
|
GTL-120 |
23 |
15 |
19 |
55 |
42 |
112 |
|
GTL-150 |
25 |
17 |
21 |
55 |
44 |
118 |
|
GTL-185 |
27 |
18.5 |
23 |
60 |
46 |
125 |
|
GTL-240 |
30 |
21 |
26 |
60 |
54 |
130 |
|
GTL-300 |
34 |
23 |
28 |
65 |
56 |
145 |
|
GTL-400 |
38 |
27 |
30 |
70 |
60 |
155 |
|
GTL-500 |
43 |
29 |
34 |
75 |
65 |
165 |

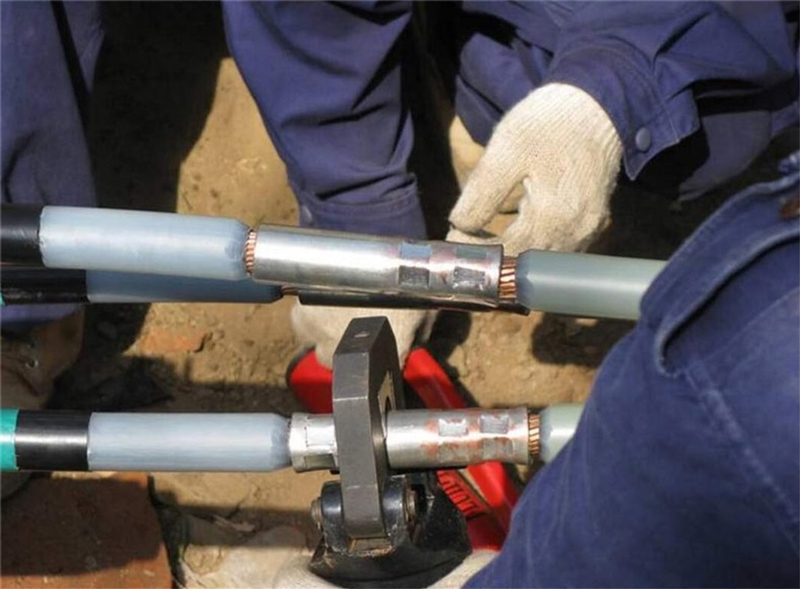

Installation Precautions
1. The screw must be tightened.
2. The cable and copper lug must be inserted in place and pressed with crimping tools.
