CL-H copper tube terminal lug with high conductivity

Short Description:

LILIAN copper lugs made by T2 pure copper tube with good electrical performance, resistance to galvanic corrosion, and long service life, they are suitable for connection the copper cable to other electrical equipment, like distribution terminal block,fuse terminal block,solar panels,home applications,etc., .Terminal lugs can be crimped by hydraulic cable lugs crimper tool or hammer style crimper.Our terminal lugs with heavy duty construction improves high temperature durability and closed design seals out the moisture, ensure connection reliability.The ends with high standard flared opening for wire insert more easier.

Send email to us

Product Detail

Product Tags

Material

Copper cable lugs are made of 99.9% pure copper tube with tinned coating for corrosion protection

Working temperature: -55°C ~ 150°C.

Cable lugs type: copper cable lug,copper tinned cable lug,aluminum cable lug,bimetallic lugs,mechanical connectors and lugs.

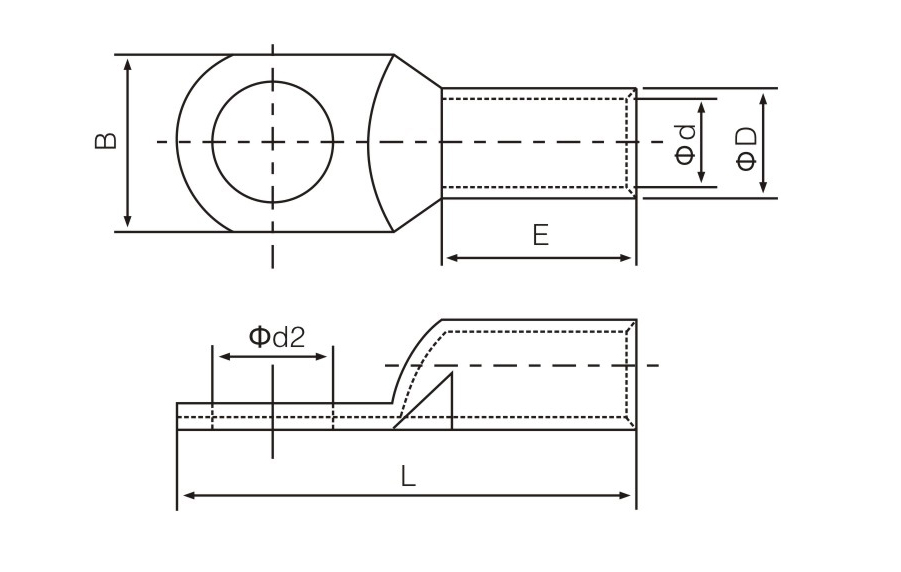

ITEM NO.	Dimension(mm)
ITEM NO.	Φd2	B	L	ΦD	Φd	E
CL14-H-6	6.4	18.3	50	8.8	5.8	28.5
CL22-H-8	8.4	18.3	52	11.3	7.7	28.5
CL38-H-10	10.5	18.3	64	12.4	9.8	34
CL38-H-12	13	18.3	64	12.4	9.8	34
CL60-H-10	10.5	20.5	70	14	11	36
CL60-H-12	13	20.5	70	14	11	36
CL70-H-10	10.5	21.4	72	15	12	38
CL70-H-12	13	21.4	72	15	12
CL80-H-12	13	23.2	75	16	13
CL100-H-12	13	26	75	18	14	40
CL125-H-12	13	28	85	20	16	40
CL150-H-12	13	31.5	94	22	17	46
CL180-H-12	13	33	98	23	18.2	46
CL200-H-12	13	37	104	26	20	48
CL250-H-12	13	41	114	28	22	48
CL325-H-12	13	46	118	32	25	50
CL400-H-12	13	54	130	37	30	60
CL500-H-12	13	57.5	150	40	31	60
B-CL14-H-6	6.4	18.3	50	8.3	5.8	28.5
B-CL22-H-8	8.4	18.3	52	10.7	7.7	28.5
B-CL38-H-10	10.5	17.2	64	11.9	9.8	34
B-CL38-H-12	13	17.2	64	11.9	9.8	34
B-CL60-H-10	10.5	20	70	13.5	11	36
B-CL60-H-12	13	20	70	13.5	11	36
B-CL70-H-10	10.5	21.4	72	14.5	12	38
B-CL70-H-12	13	21.4	72	14.5	12
B-CL80-H-12	13	23.2	75	15.5	13
B-CL100-H-12	13	25.5	75	17.3	14	40
B-CL125-H-12	13	28	85	19.3	16	40
B-CL150-H-12	13	30.5	94	21.1	17	46
B-CL180-H-12	13	32.5	98	22.1	18.2	46
B-CL200-H-12	13	36	104	24.9	20	48
B-CL250-H-12	13	39.5	114	26.9	22	48
B-CL325-H-12	13	45	118	30.7	25	50
B-CL400-H-12	13	54	130	35.7	30	60
B-CL500-H-12	13	56	150	38.4	31	60

lnstallation Precautions

1.The screw must be tightened.

2.The cable and copper lug must be inserted in place and pressed with crimping tools.
